Create reports

If you have not read it yet then please start with an overview of eazyBI concepts.

Here you will find the main steps on how to start analyzing your uploaded or imported data and create and save reports. Go to the Analyze tab and follow these instructions. You can also try these steps in the demo Sales cube.

On this page:

Drag dimensions to columns and rows

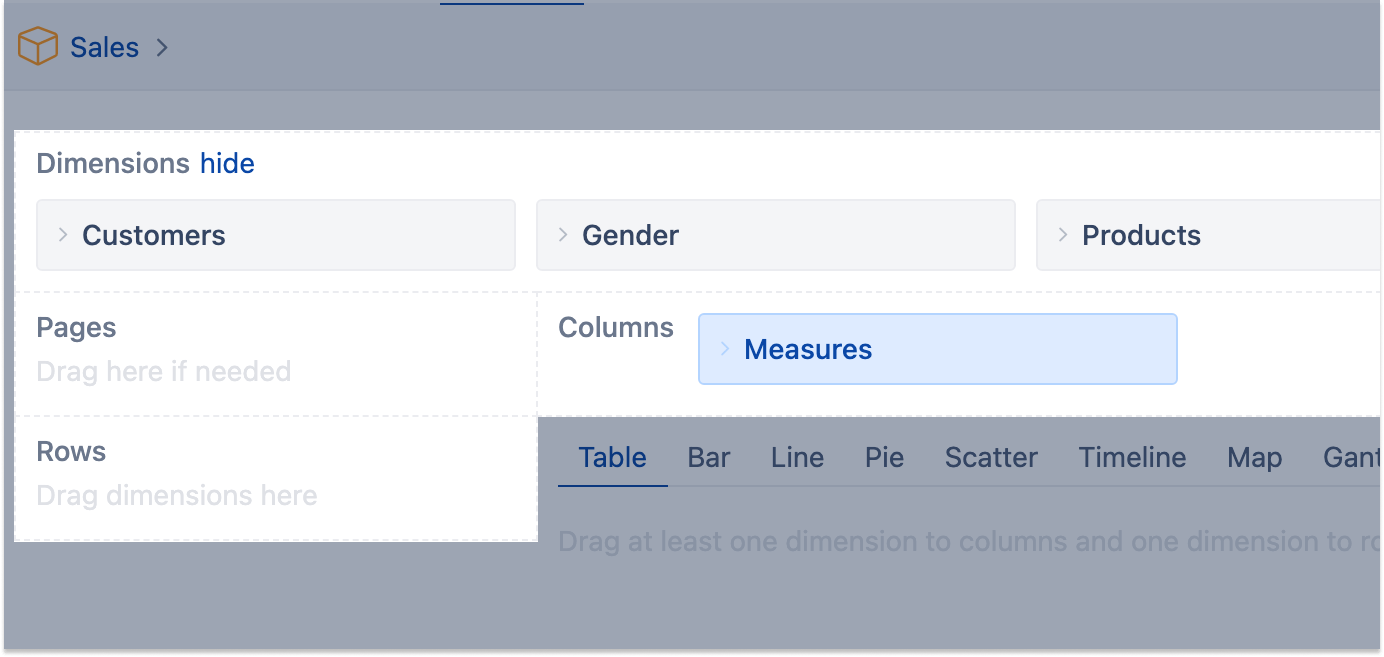

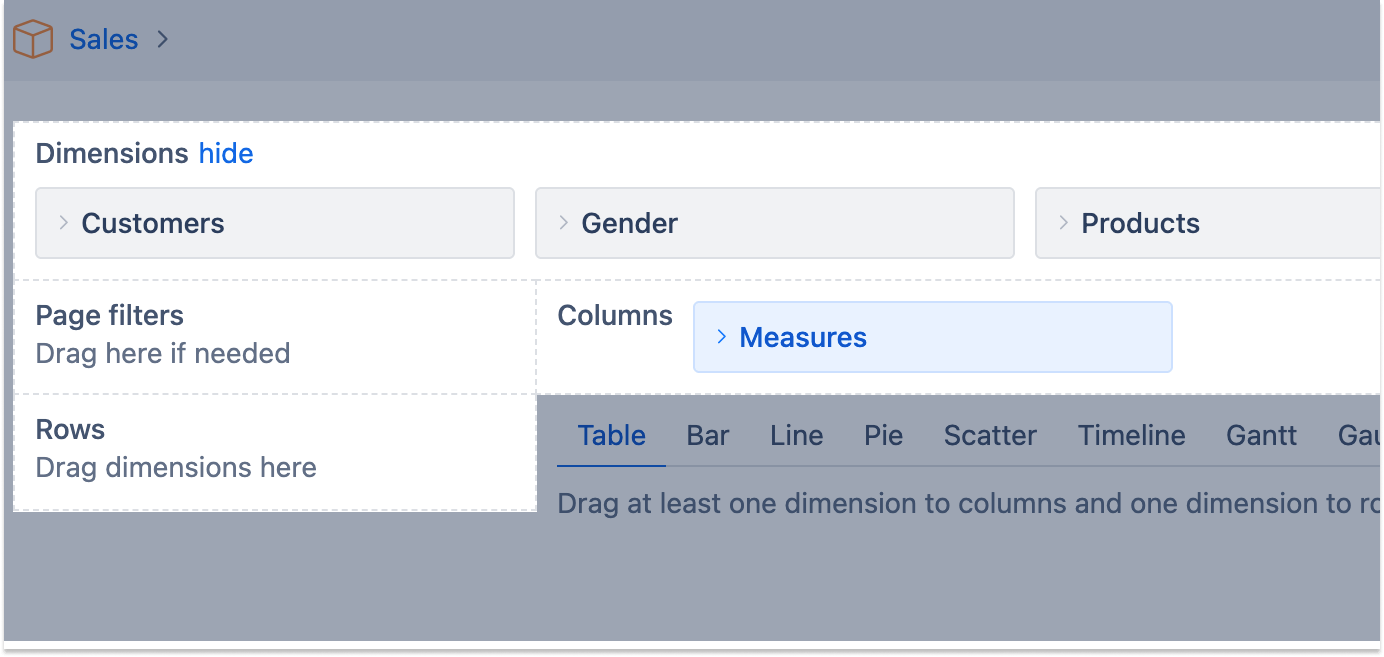

Measures are on report columns by default and all available dimensions are grouped in the Dimensions section.

Select dimensions across which you would like to analyze your data (measures). In this example, we would like to analyze who are our best customers based on the sales amount.

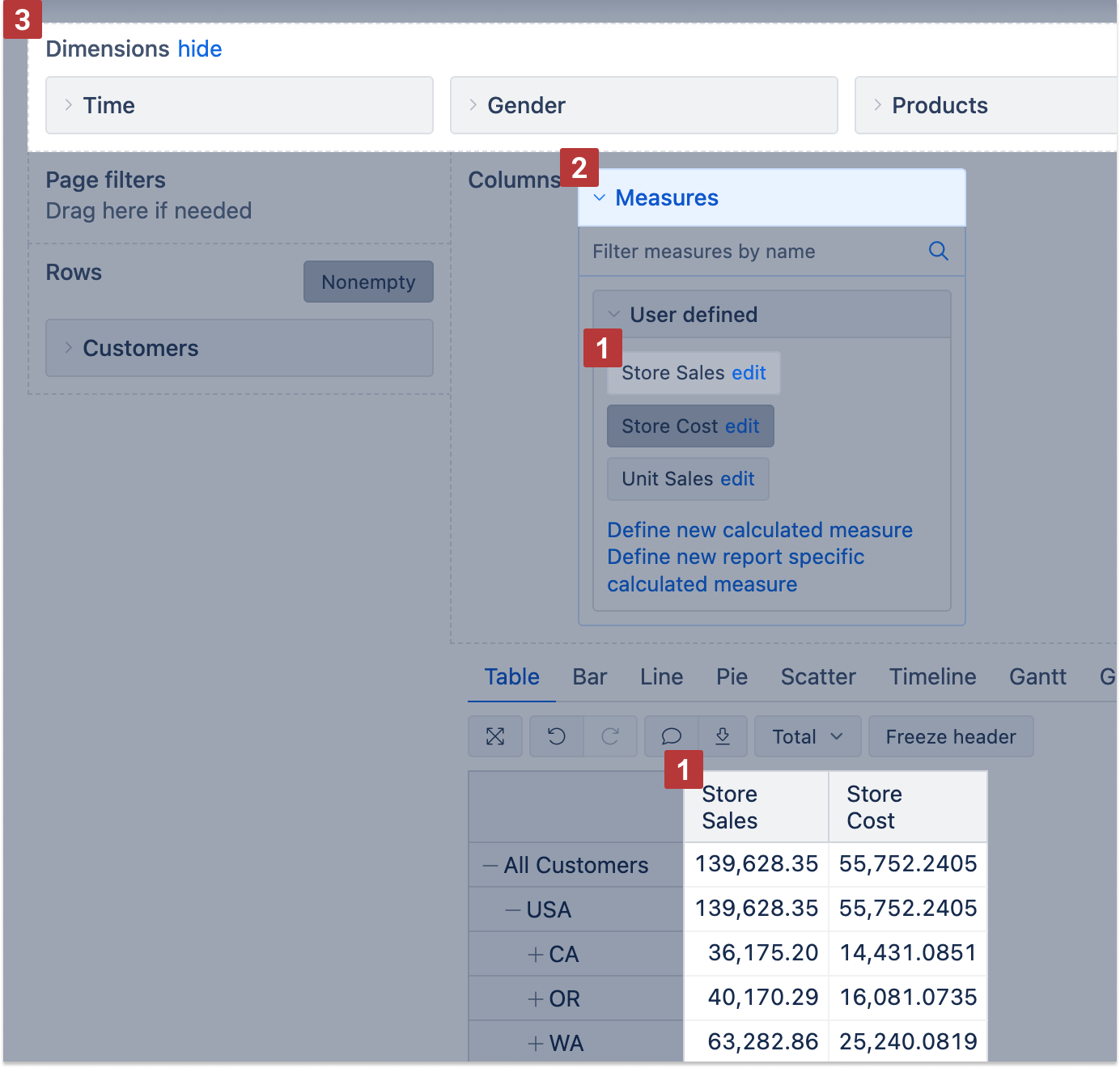

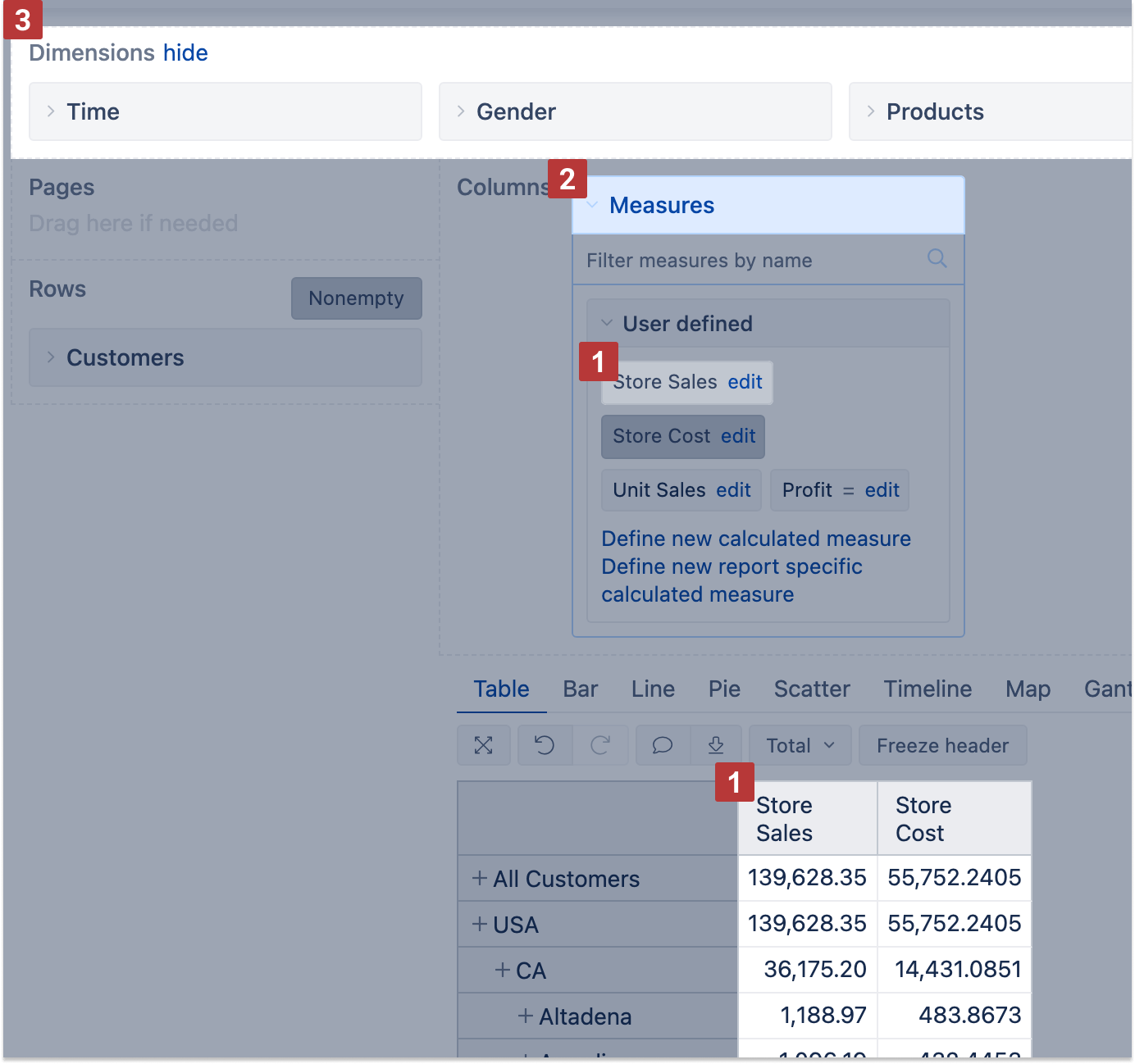

One or several default measures [1] are already selected in the report columns. You can select one or several measures you would like to analyze; a measure defines report context and the relationship between report dimension and the measure itself. You may move Measures [2] to rows or pages while you can't remove them from the report altogether.

There is no difference in the report results whether you select a dimension in the report rows or columns; it affects only the report layout. Usually, Measures are selected in columns and dimensions with a lot of selected members on rows.

After you have selected all needed dimensions for the report, hide the dimension section [3] to get more space for the report results. You can always unhide dimensions.

Page dimensions

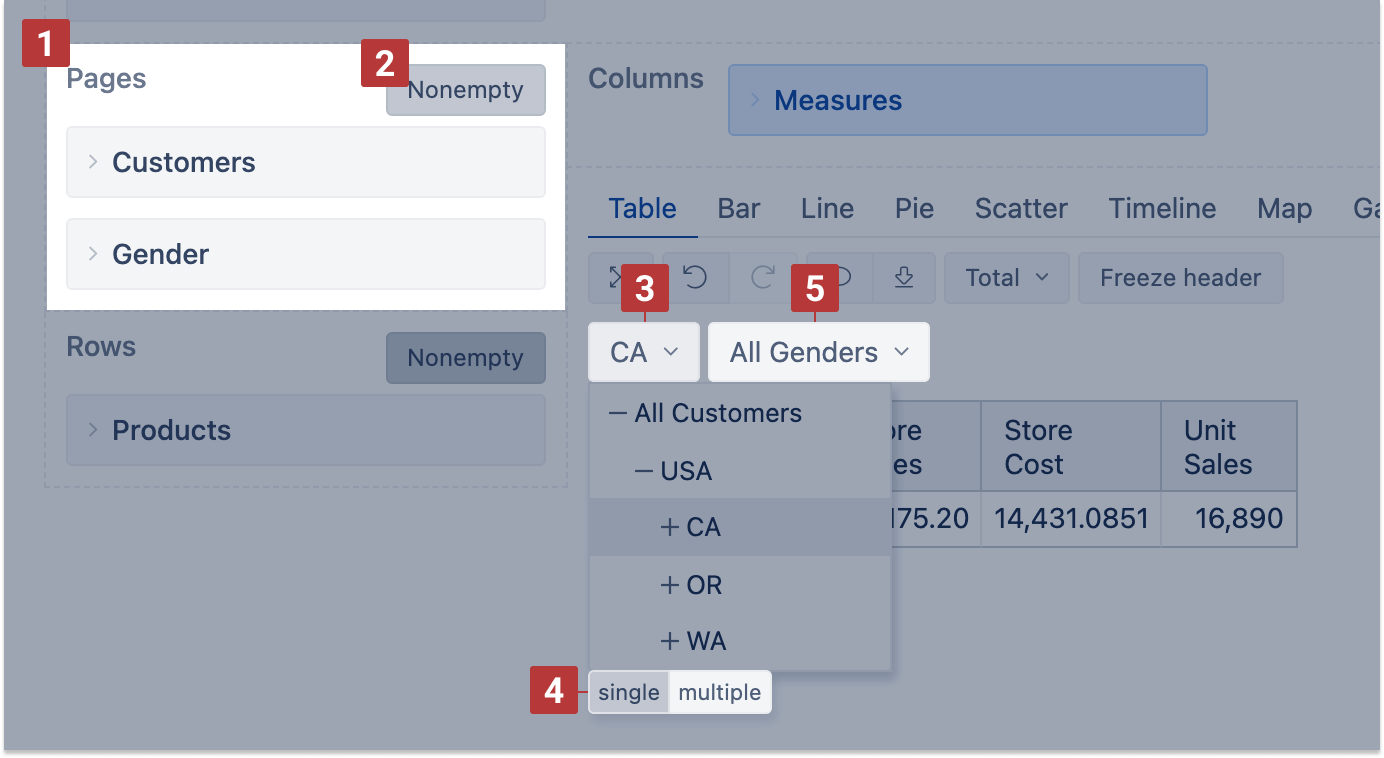

You can drag dimensions to the pages section [1] to filter report data. Select one or several dimension members from the dimension drop-down list [3], and the filter is applied to all measures of the report. You may select one or multiple members in the filter [4].

If multiple dimensions are in the pages section, an additional option Nonempty for pages is available to limit dimension members for the page filter drop-down lists [2]. The limitation is based on the dimension order, the selected value on the left dimension [3] limits the value list for the dimensions on the right [5].

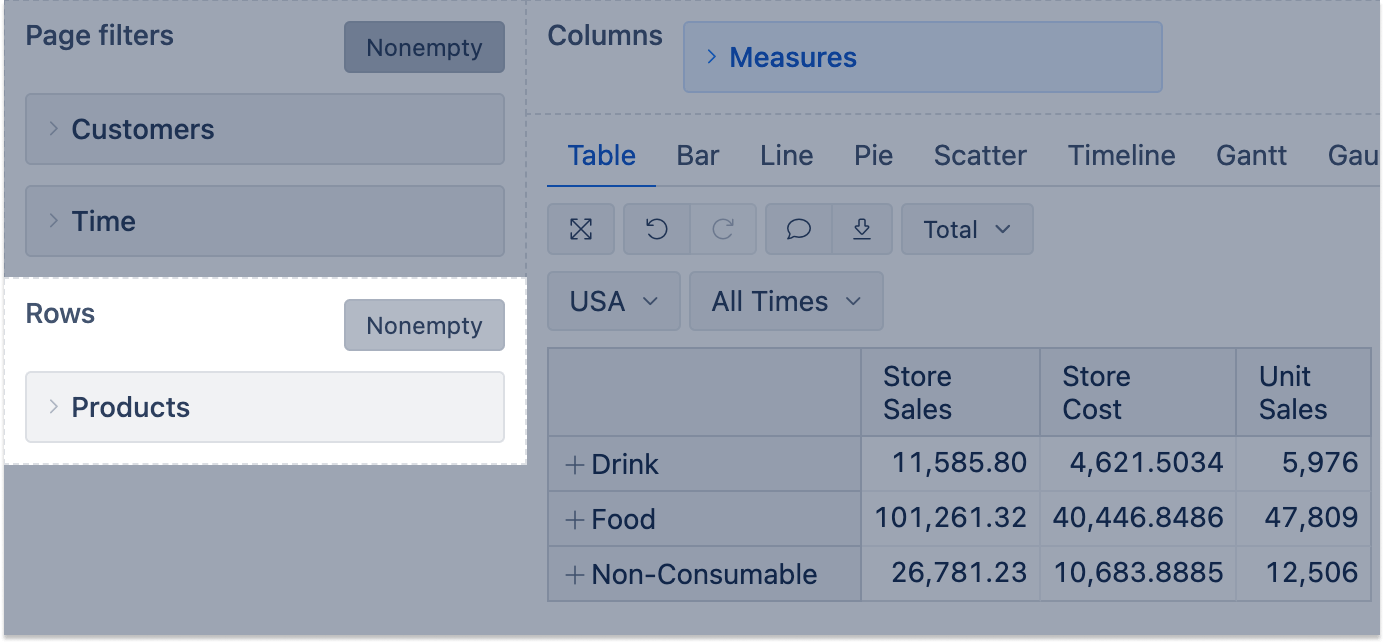

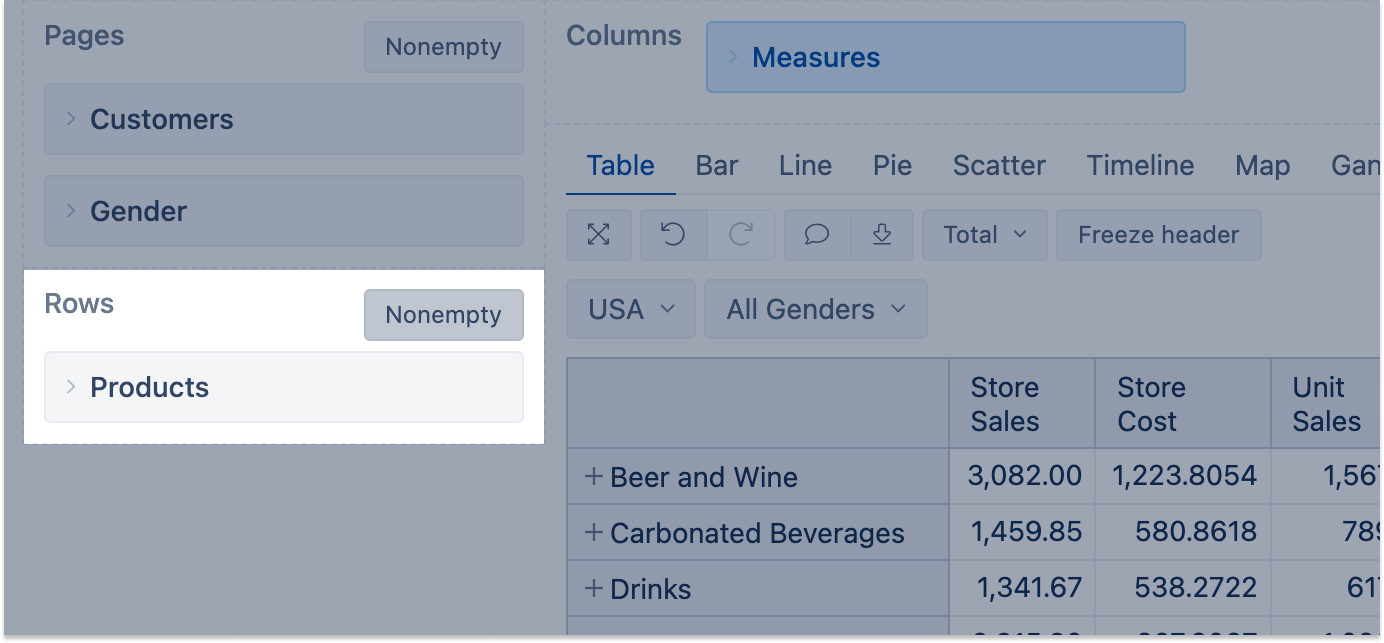

By default, all dimension members selected on rows will be visible while Measures will be shown only where applicable based on the filter. If you wish to see only dimension members that have values for selected filters, click on the Nonempty option in the rows section header. This will make a NonEmpty cross join with dimension members and selected measures - to show in rows just dimension members that have values based on the selected filter.

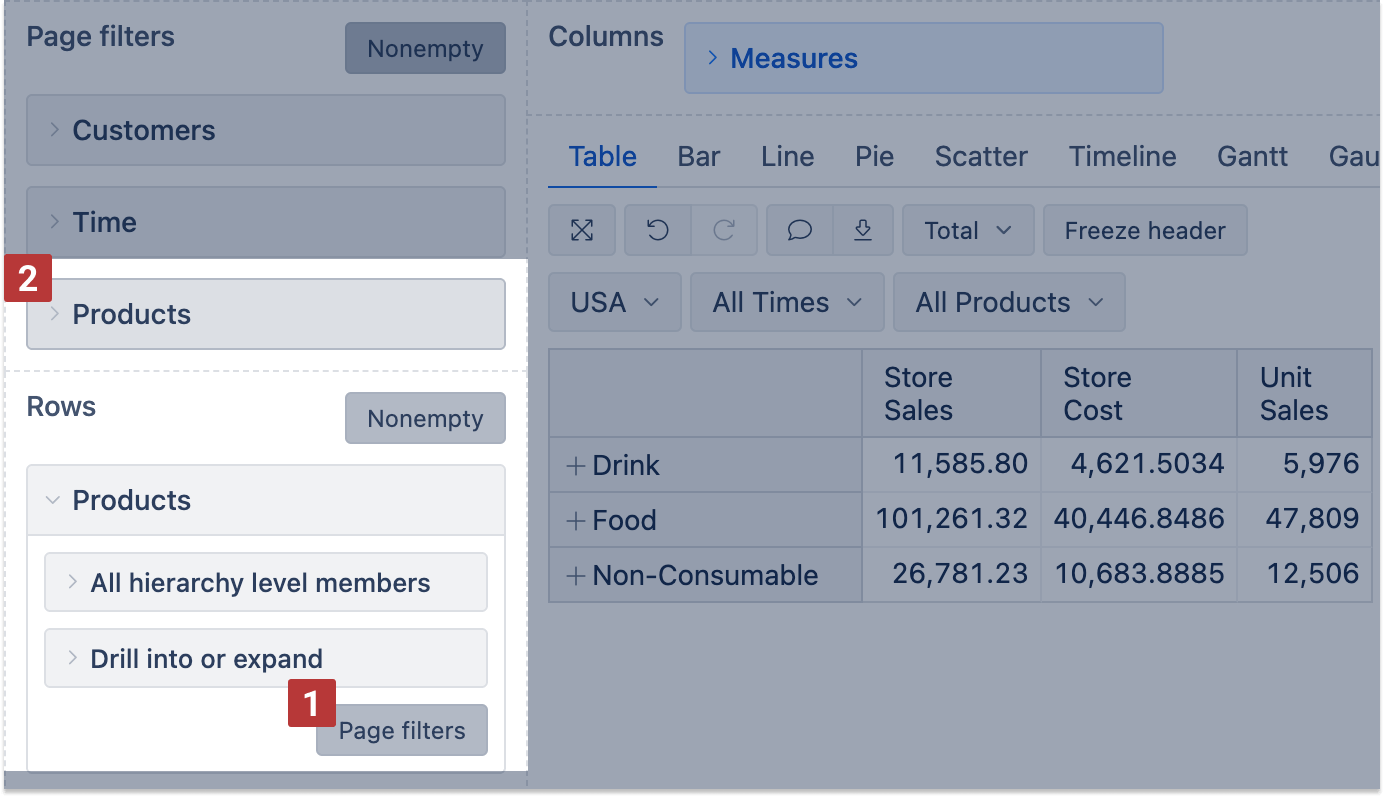

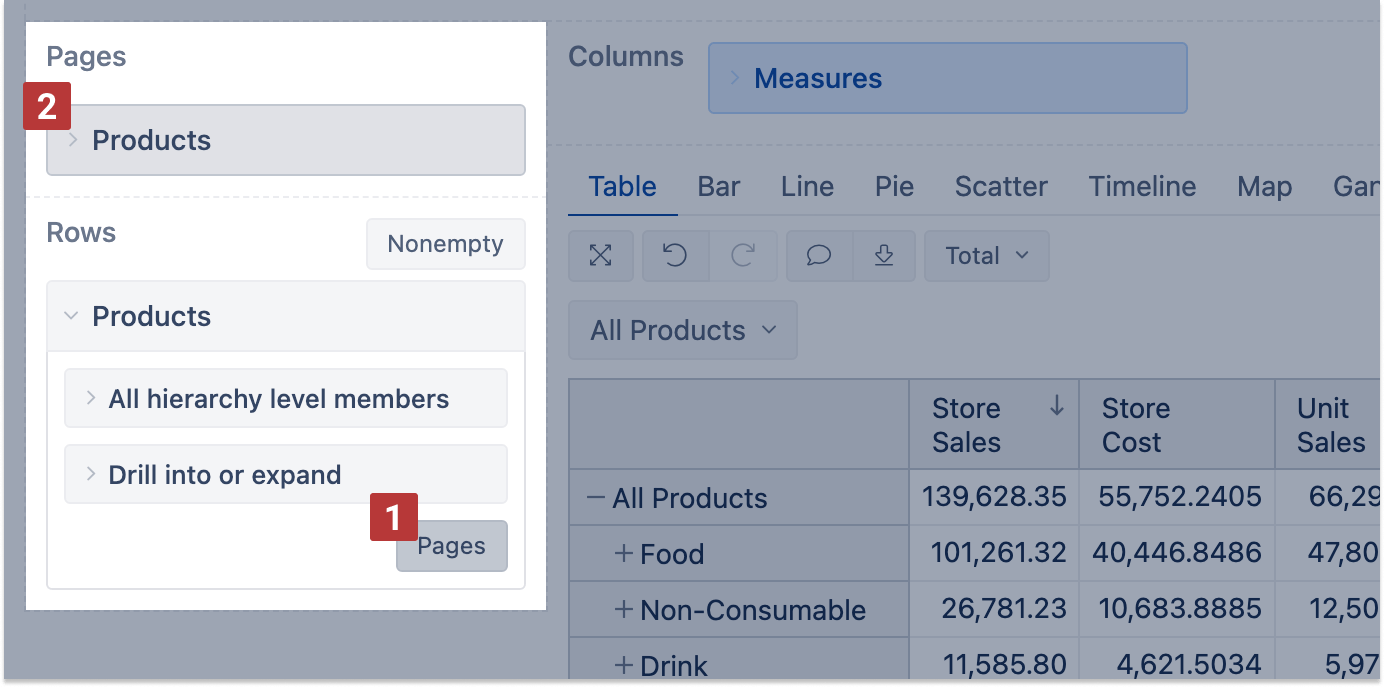

You may use one dimension in the report rows (or columns) and pages [1] at the same time. It allows to display the dimension members in rows and use this same dimension to filter them. It could be useful in cases if you want to display, for instance, months of any selected year, or only a few selected dimension members.  If the dimension has several hierarchies, make sure the chosen hierarchy on pages matches the hierarchy on rows or columns. And when changing the hierarchy on rows or columns (for example, from Time default hierarchy representing months to weekly hierarchy), change it also on pages.

See short video:



Expand and collapse, rearrange measures and dimension members

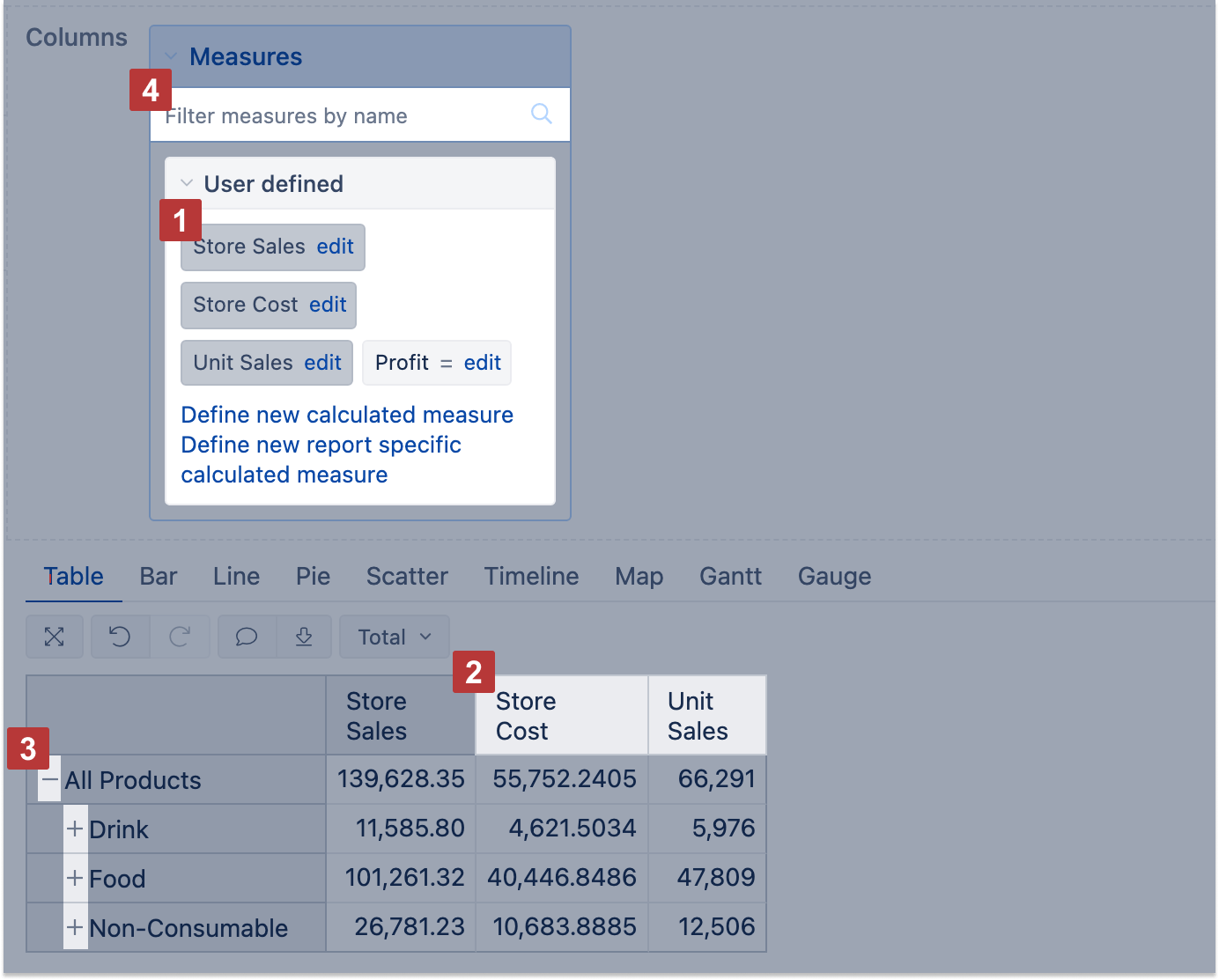

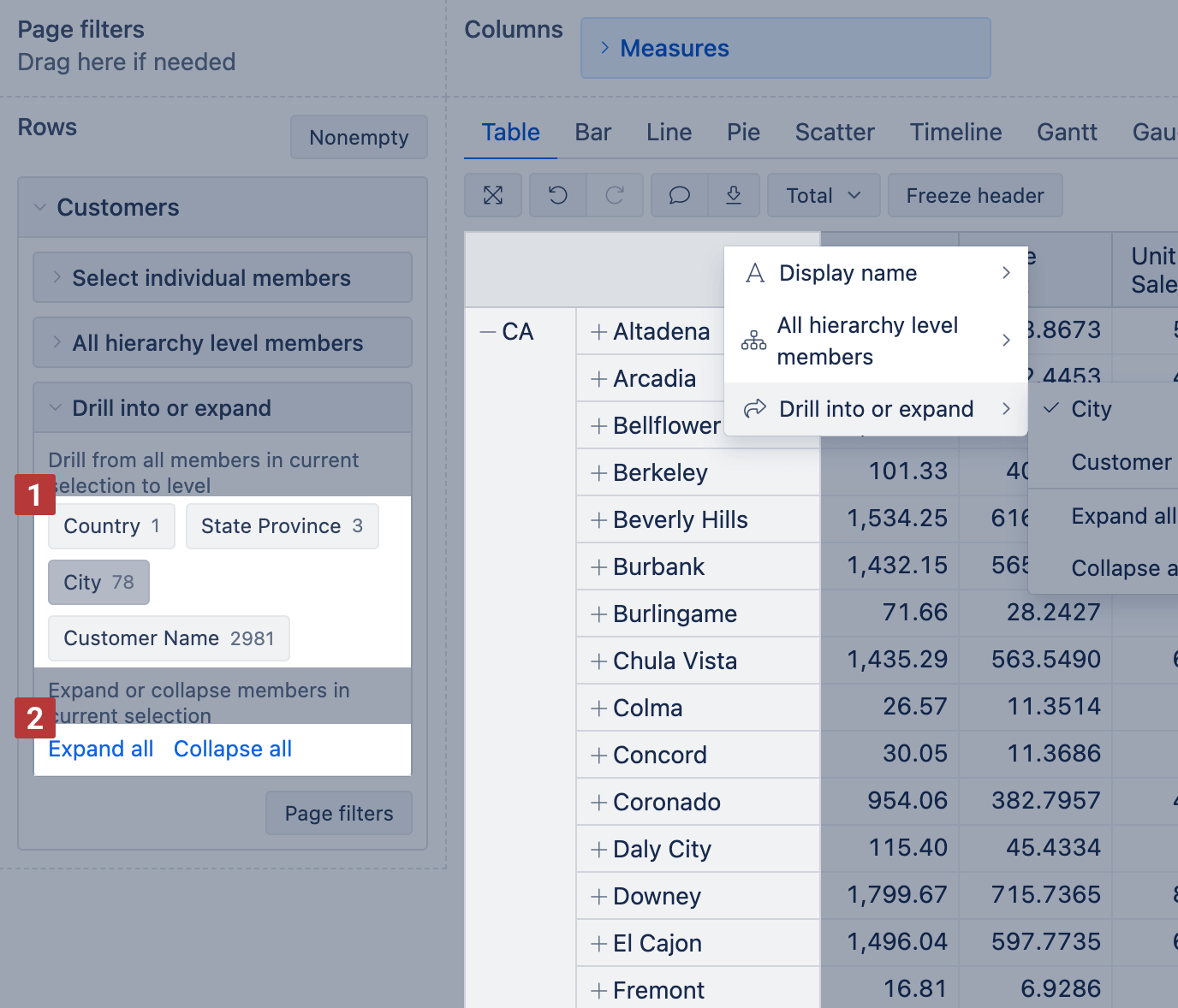

You can expand and collapse [3] selected dimension members to show detailed hierarchy level members (e.g. start with all customers and expand into countries, regions or states, cities, and individual customers). You can add or remove [1] selected measures in columns or rearrange them with drag and drop [2]. If added one by one, measures are displayed in the same order as they were added to the report. Use filters [4] to find measures faster.

Instead of expanding hierarchy levels from the top, you can select all hierarchy level members (e.g. all countries, state provinces, cities, customers). And then you can order them by selected measure or select other available member actions. Read also about more advanced filters using date filters and regular expressions.

Rearrange dimension member order in the report

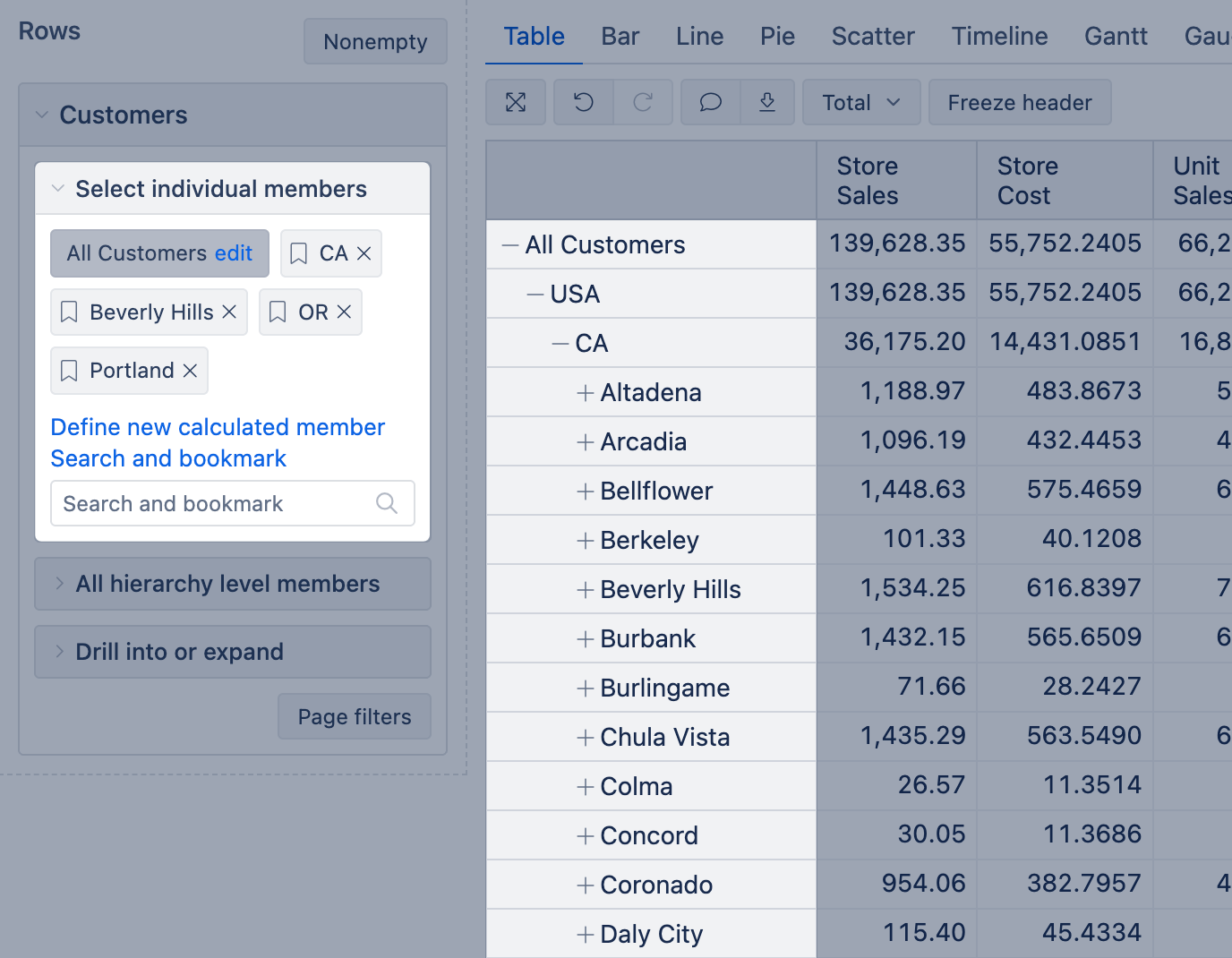

The sequence of dimension members in rows or columns is set automatically. To rearrange them, bookmark dimension members and then add them to the report one by one in the needed order.
Another option is creating a calculated member in the same dimension with members in the correct sequence and then using this calculated member instead of the "All" hierarchy level members.

Order and filter rows by measure values

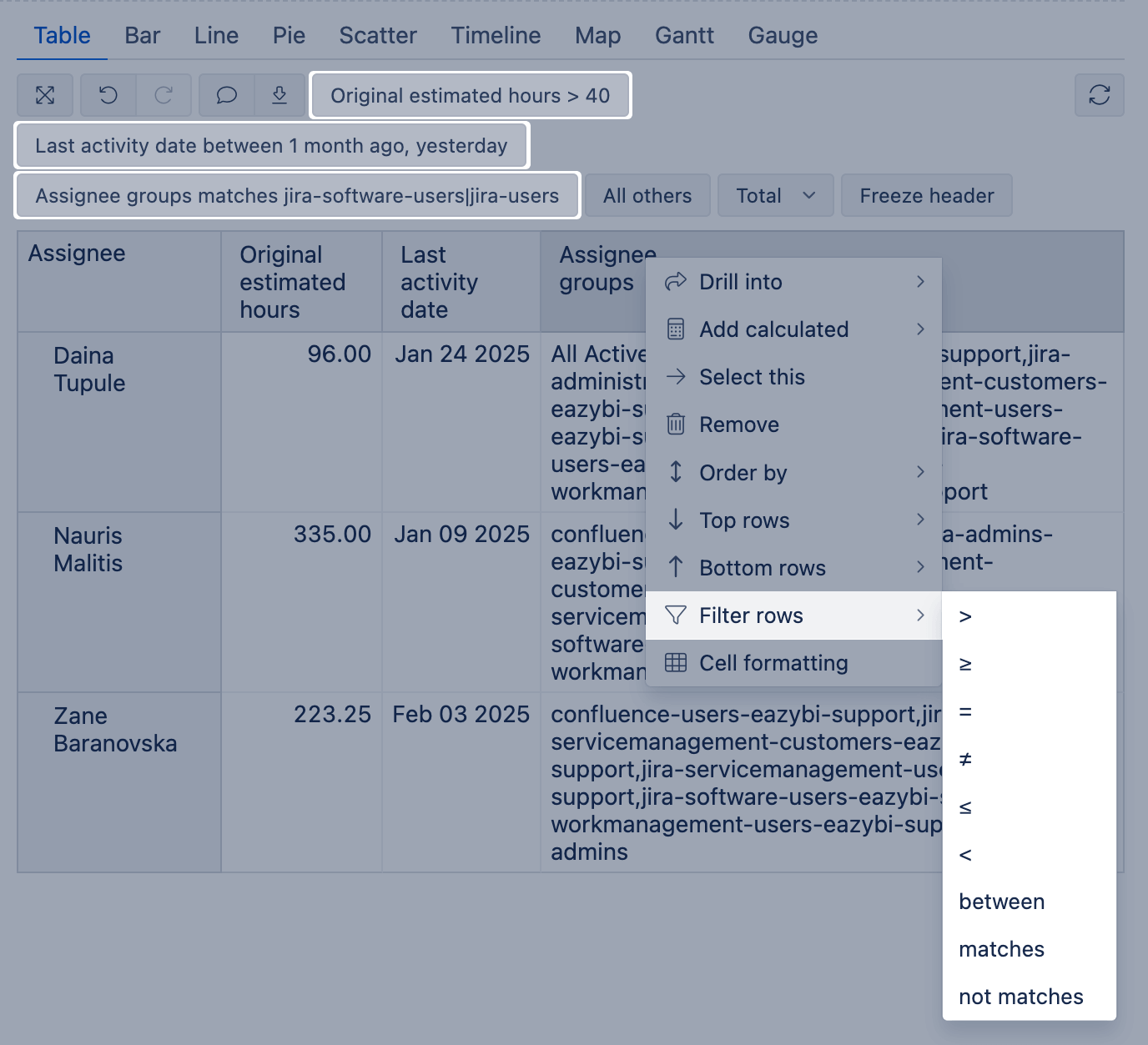

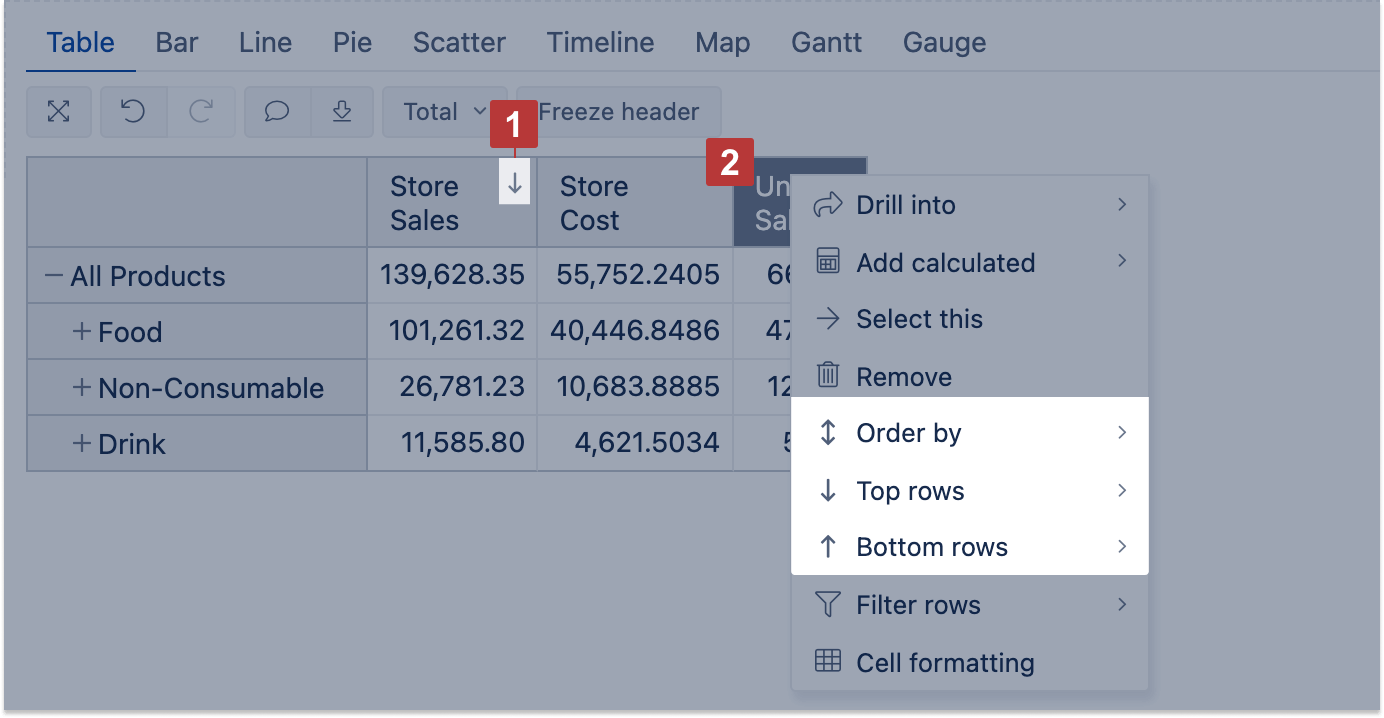

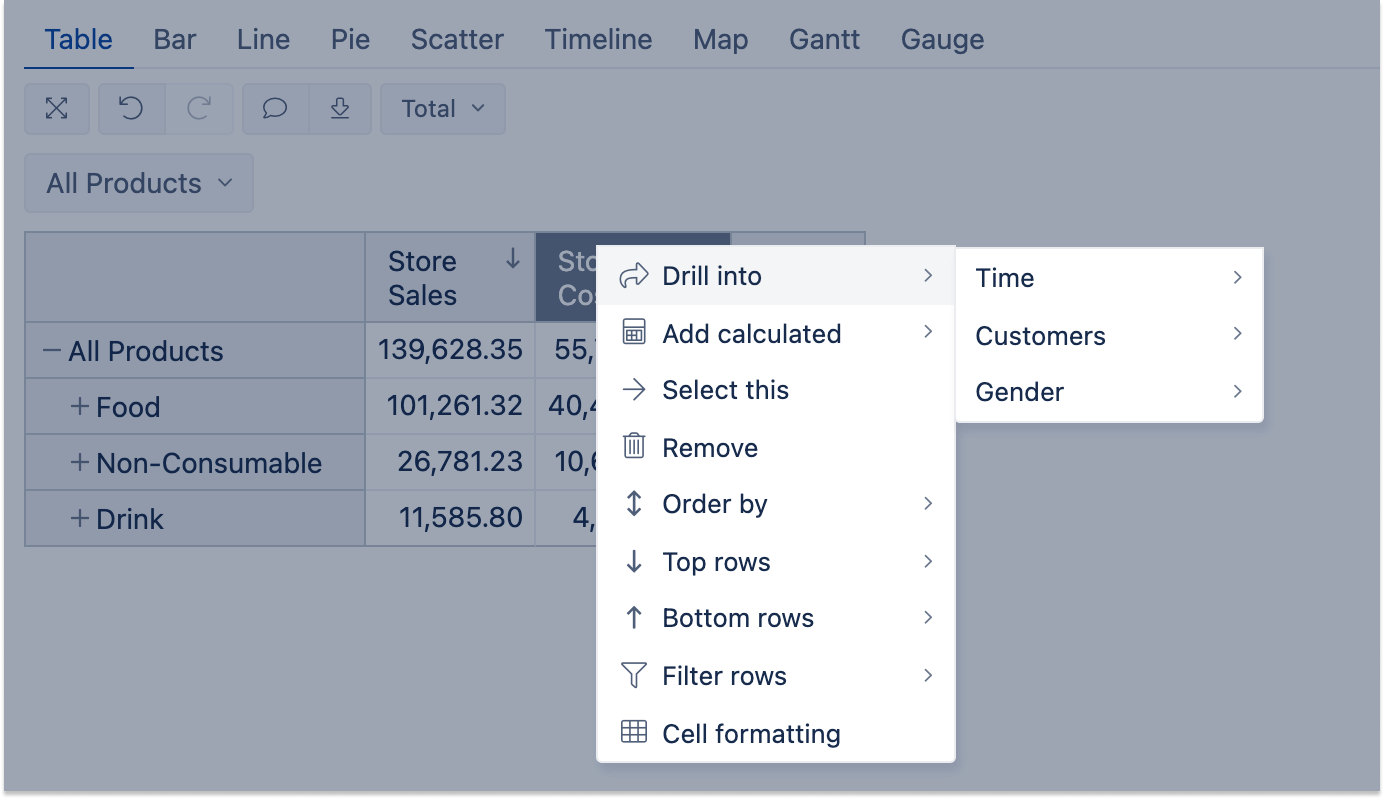

When clicking on a column header, there are several built-in options for data representation. You may order rows by the measure's value [1], drill into another dimension, select only one member for a report or remove a chosen member from a report, select top or bottom rows based on the chosen measure, filter rows by text pattern or value range, format cells according to their values [2].

Drill into measure by another dimension level

By default, all measures selected in the report columns are cross joined by all members of the dimension selected in the columns with the measures. To cross join only one particular measure with a particular dimension level, you may use the option Drill into – click on the measure, select "Drill into" and the dimension and the level you need.

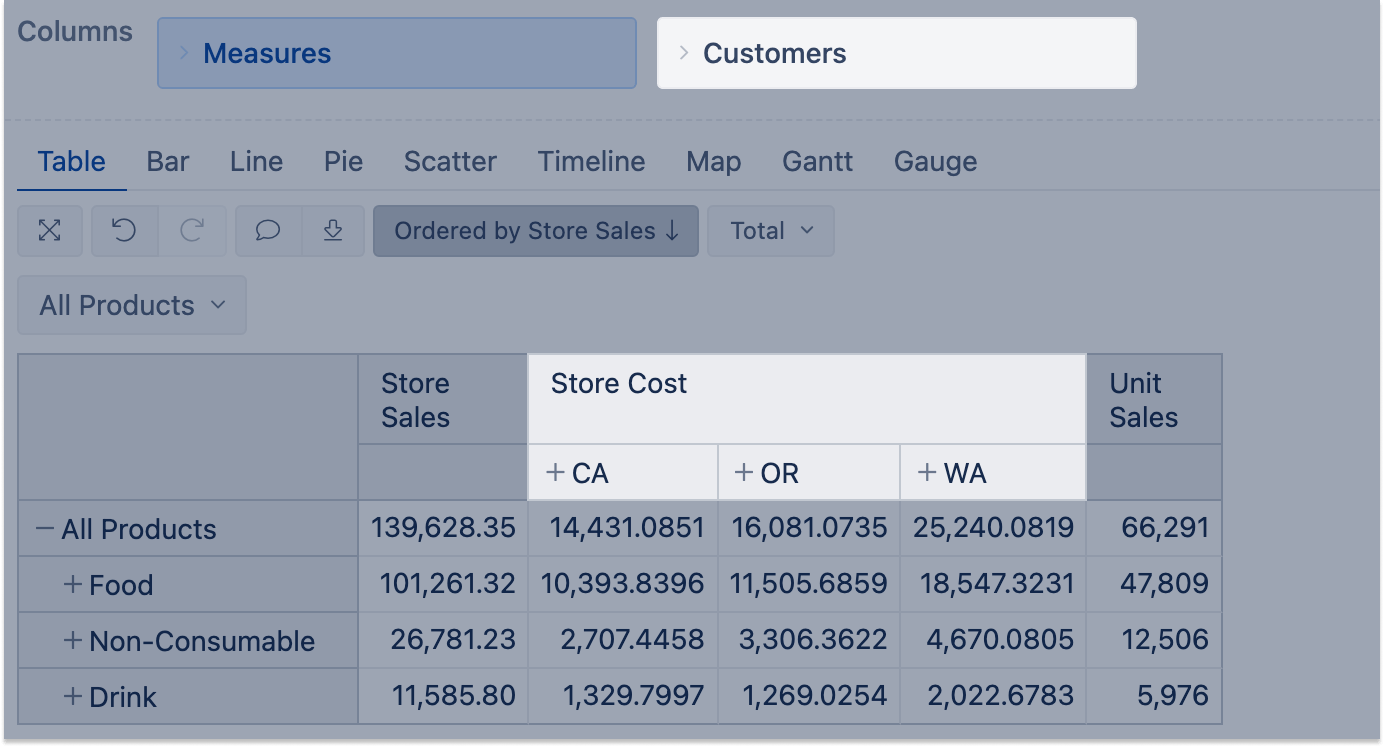

For example, if you select to drill into Customers dimension State Province level for measure Store Cost, the Customer dimension would be added to the report Columns next to the Measures and measure Store costs would split by Customer dimension State Province level members. Other measures won't be drilled into this dimension and will be left at the summary level.

Drilling into only one dimension for one measure is allowed in the same report. Changing order of dimensions in Columns (moving Measures after the added dimension) all measures will be drilled into this particular dimension level, which was added through the "Drill into" option.

You may remove the dimension by clicking on the same measure and using the Remove drill into option.

There are also some other report interaction features you can use.

Add standard calculations based on a selected measure

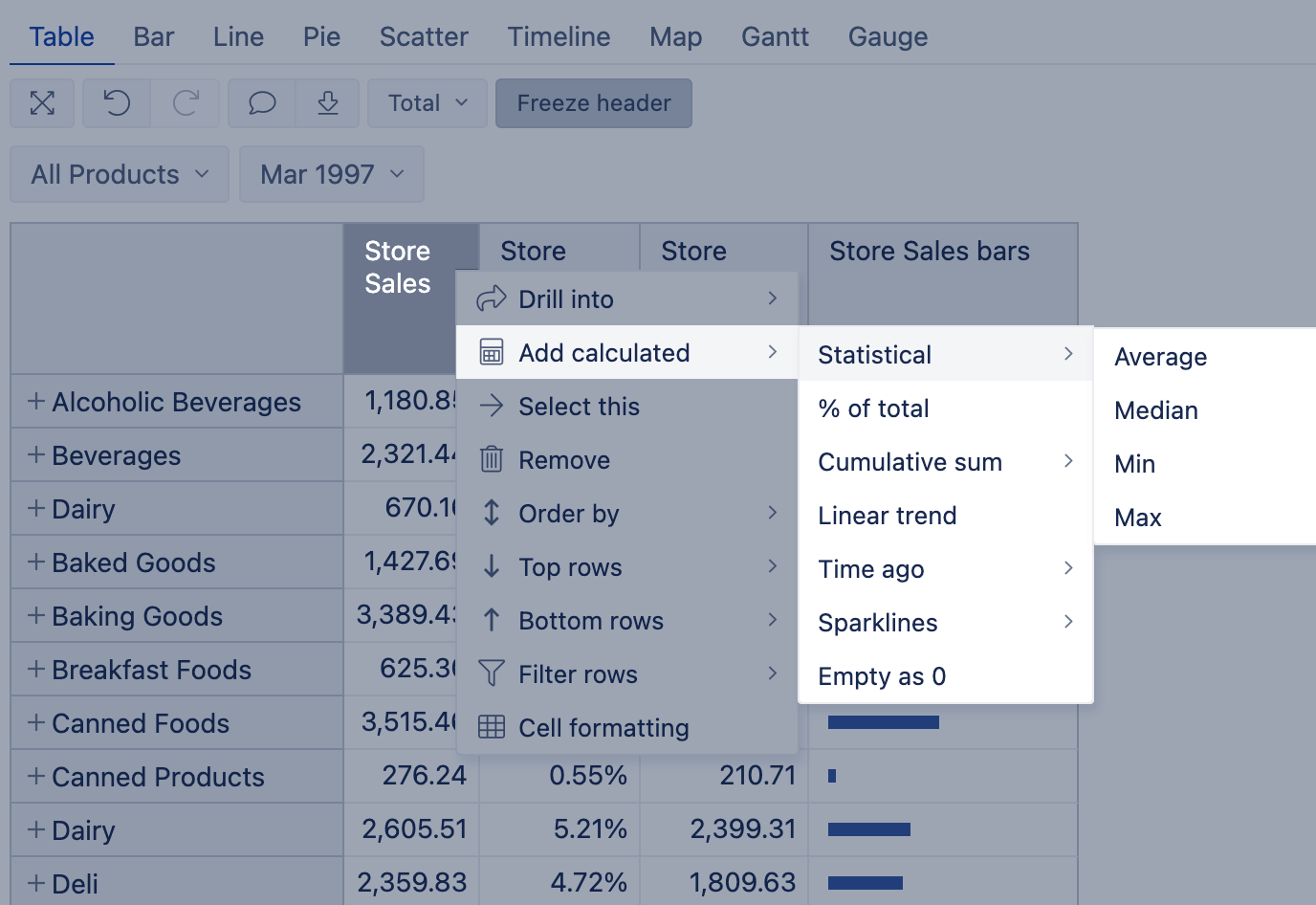

When you have selected some numerical measure for a report, you can select Add calculated to add some standard calculations based on the chosen measure and visible data in the report.

  • Statistical calculations return the Average, Median, Min, Max value of all values on report rows.
  • Calculate a % of total value from the sum of all rows.
  • The cumulative sum has an option to add values either with or without empty values in any row for this measure.
  • The linear trend generates a straight line representing the trend for this measure on visible rows.
  • Time ago calculations work with the Time dimension on Rows on a particular level (Month, Week, Day). You can analyze Time on Rows compared to Previous Period (works dynamically for any selected time level), Month ago (pulls in values month ago, suited for Day level), Year ago (pulls in values from a year ago for any selected time level). You can pull in values of the period, compare changes, or changes %  to the selected period back in time.
  • Sparklines make the table more informative by visualizing compared values with bars or giving a quick overview of the measure changes over time. Make sure to choose the Sparkline formatting that best represents your data. To change the color of the Sparkline, choose the text or background color in the cell formatting of the Sparkline column.
  • Standard calculation Empty as 0 could be used for cases when there are no values in measure and you would like to treat those values as 0.

When you select to add a calculated measure, for example, add calculated % of total, then eazyBI creates an additional column with the calculated percentage for each row from the total value in the all visible report rows; this new calculated measure is report-specific and will not be available for other reports.

Customize table

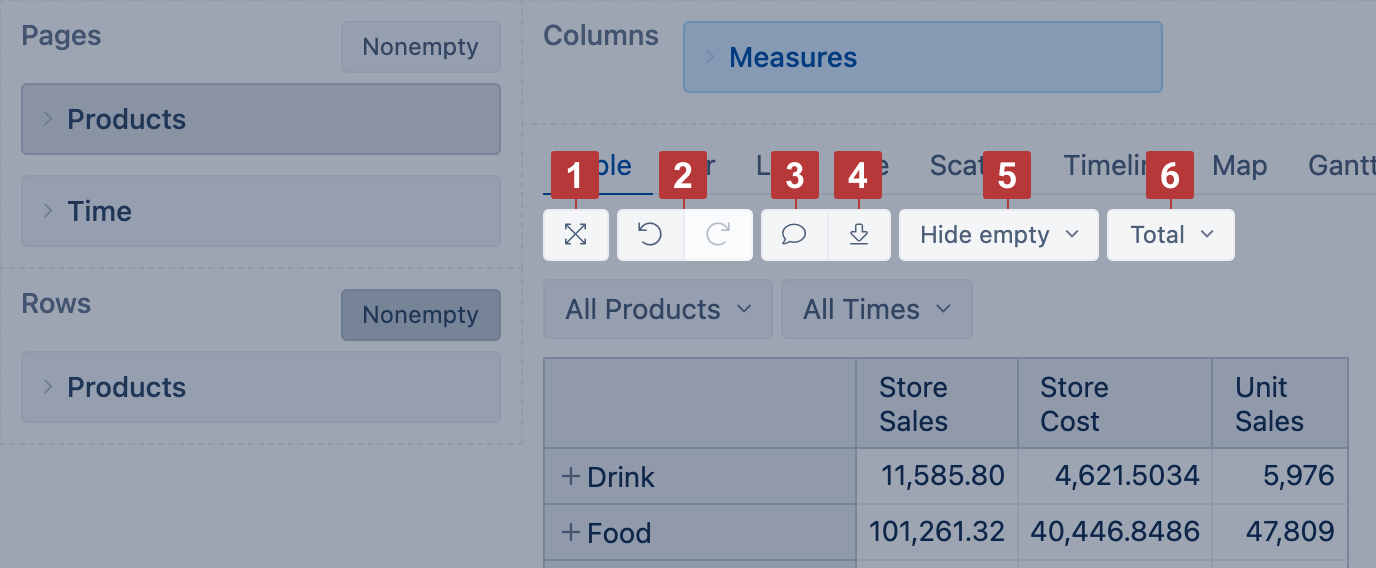

You can try out some options for report result configuration in the report results toolbar - maximize report area [1], undo & redo buttons [2] as well as adding report description [3], exporting results [4] to file in CSV, XLS, PNG, PDF formats and hide empty rows and columns without values [5]. You can add the bottom row and far-right column with the aggregated Total value [6].

Change row dimension headers

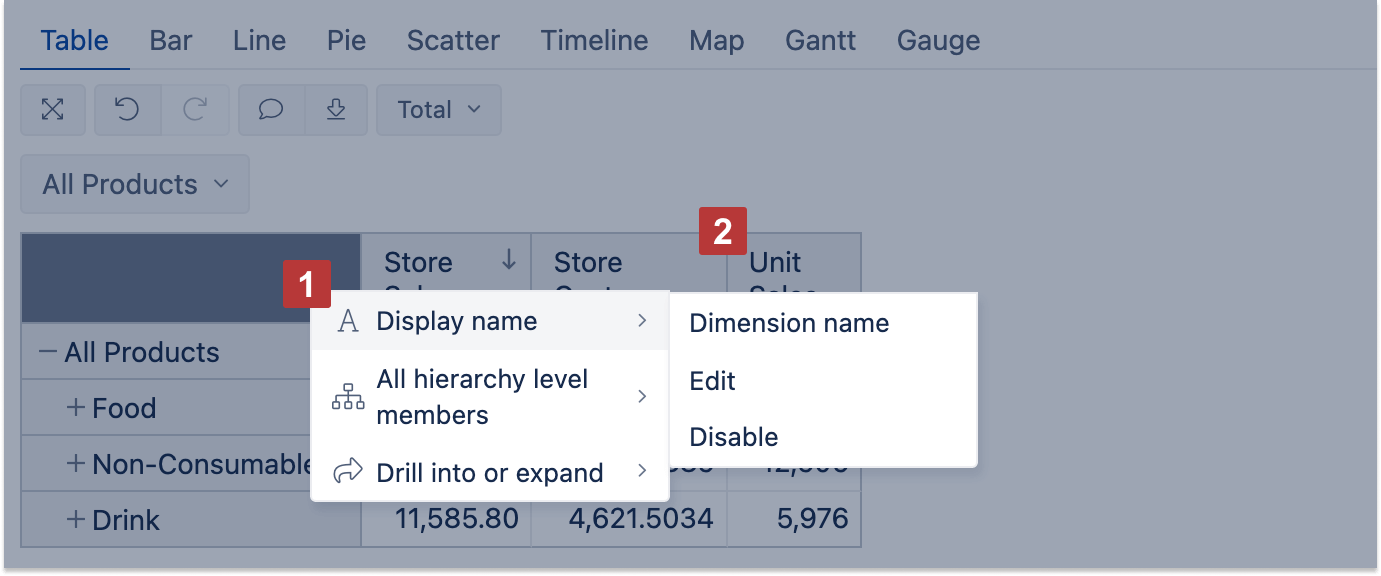

You may add or change a header on columns containing row dimension members [1]. Choose to display the dimension name as a header, or edit and enter a custom display text.

Headers of measures can't be changed from the report view [2]. You may change the name of the measure itself (it would affect all reports where the measure is used) or create a new measure (or calculated member for other dimensions) with the needed name and then use it instead of originally selected.

Vertical column headers

It is possible to change the table report to show the column headers vertically. The option of the vertical header will appear automatically when the report width exceeds the size of the report design dashboard area, and the horizontal scrollbar will show up.

The “Vertical header” button will show up, and you can turn on the report to show the lowest level column headers vertically.



Save report and toolbar buttons

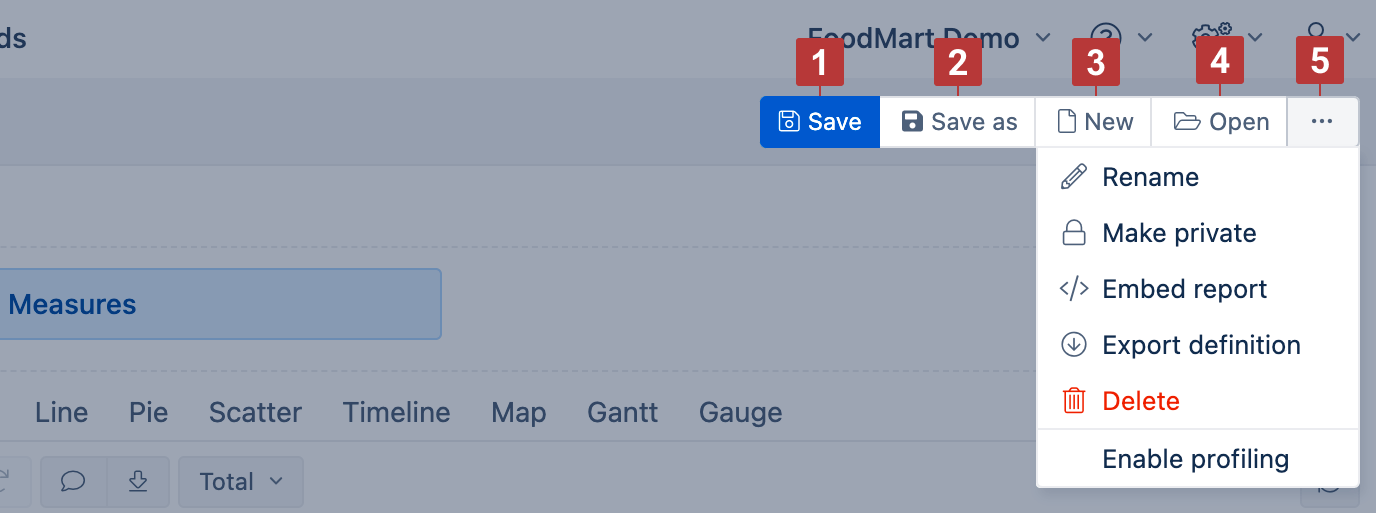

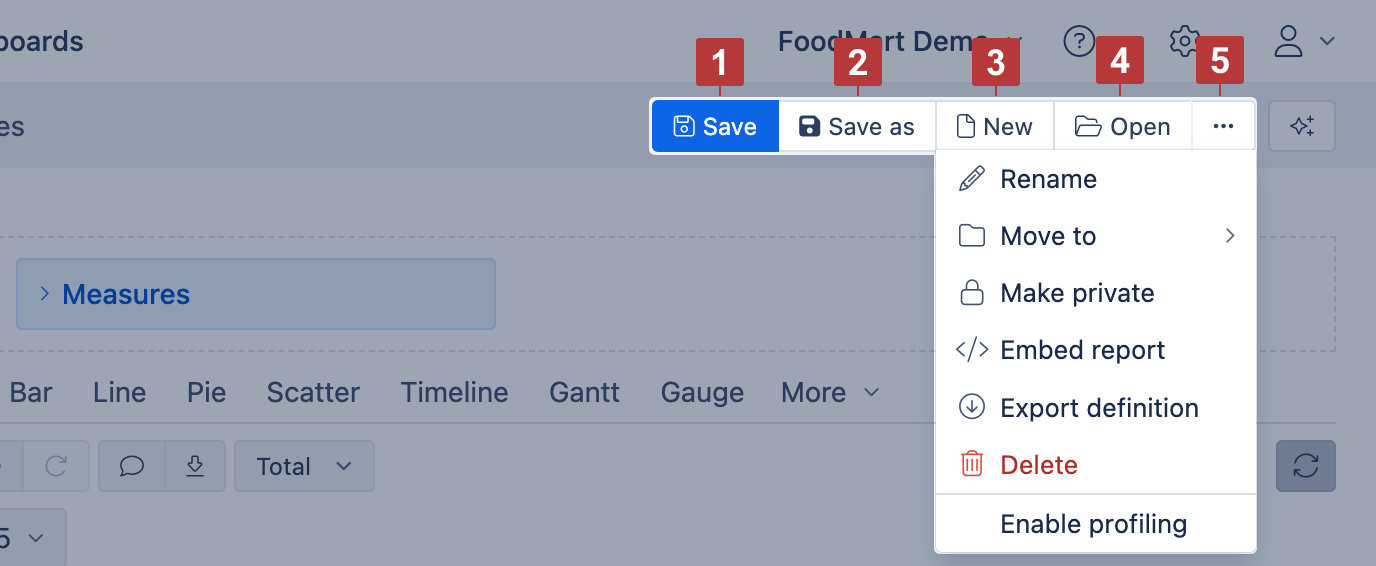

If you have created a report you would like to use later or you have modified the report or report specific measure and would like to save the changes, then save it from the report header toolbar [1]. If you edit the existing report and would like to save it as well as to keep the previous report, click the save as button [2] and give the report a name. This will save the new report and leave the previous report as it was. There are also other report actions in the report header toolbar, e.g. to create a new report [3], open another report [4], rename, mark report private, delete report, Export and import report definitions, or embed reports in other HTML pages or publish on wallboards [5].
